ET-TC-105 - Medium Voltage, single core, EPR/PVC
ET-TC-105 - Medium Voltage, single core, EPR/PVC
Power cable for fixed installations in medium voltage systems.
EPR/PVC. 105°C. 5-8-15-25-35-46 kV according to ICEA S-96-639. Read moreET-TC-105 1/0 AWG 5kV 133%IL
Nexans ref.
- Conductor cross-section (AWG/KCMIL): 1/0
- Conductor cross-section: - kcmil
- Conductor cross-section: 53.5 mm²
- Operating voltage: 5 kV
- Perm current rating in air 40°C: 290 A
- Permissible current rating buried 20°C: 320 A
- Perm. Current in duct 20°C: 233 A
ET-TC-105 2/0 AWG 5kV 133%IL
Nexans ref.
- Conductor cross-section (AWG/KCMIL): 2/0
- Conductor cross-section: - kcmil
- Conductor cross-section: 67.4 mm²
- Operating voltage: 5 kV
- Perm current rating in air 40°C: 330 A
- Permissible current rating buried 20°C: 365 A
- Perm. Current in duct 20°C: 265 A
ET-TC-105 70 mm² 5kV 133%IL
Nexans ref.
- Conductor cross-section (AWG/KCMIL): -
- Conductor cross-section: - kcmil
- Conductor cross-section: 70 mm²
- Operating voltage: 5 kV
- Perm current rating in air 40°C: 338 A
- Permissible current rating buried 20°C: 372 A
- Perm. Current in duct 20°C: 270 A
ET-TC-105 3/0 AWG 5kV 133%IL
Nexans ref.
- Conductor cross-section (AWG/KCMIL): 3/0
- Conductor cross-section: - kcmil
- Conductor cross-section: 85 mm²
- Operating voltage: 5 kV
- Perm current rating in air 40°C: 385 A
- Permissible current rating buried 20°C: 415 A
- Perm. Current in duct 20°C: 302 A
ET-TC-105 95 mm² 5kV 133%IL
Nexans ref.
- Conductor cross-section (AWG/KCMIL): -
- Conductor cross-section: - kcmil
- Conductor cross-section: 95 mm²
- Operating voltage: 5 kV
- Perm current rating in air 40°C: 412 A
- Permissible current rating buried 20°C: 438 A
- Perm. Current in duct 20°C: 322 A
ET-TC-105 4/0 AWG 5kV 133%IL
Nexans ref.
- Conductor cross-section (AWG/KCMIL): 4/0
- Conductor cross-section: - kcmil
- Conductor cross-section: 107 mm²
- Operating voltage: 5 kV
- Perm current rating in air 40°C: 445 A
- Permissible current rating buried 20°C: 465 A
- Perm. Current in duct 20°C: 345 A
ET-TC-105 120 mm² 5kV 133%IL
Nexans ref.
- Conductor cross-section (AWG/KCMIL): -
- Conductor cross-section: - kcmil
- Conductor cross-section: 120 mm²
- Operating voltage: 5 kV
- Perm current rating in air 40°C: 430 A
- Permissible current rating buried 20°C: 494 A
- Perm. Current in duct 20°C: 367 A
ET-TC-105 150 mm² 5kV 133%IL
Nexans ref.
- Conductor cross-section (AWG/KCMIL): -
- Conductor cross-section: - kcmil
- Conductor cross-section: 150 mm²
- Operating voltage: 5 kV
- Perm current rating in air 40°C: 493 A
- Permissible current rating buried 20°C: 558 A
- Perm. Current in duct 20°C: 417 A
ET-TC-105 185 mm² 5kV 133%IL
Nexans ref.
- Conductor cross-section (AWG/KCMIL): -
- Conductor cross-section: - kcmil
- Conductor cross-section: 185 mm²
- Operating voltage: 5 kV
- Perm current rating in air 40°C: 564 A
- Permissible current rating buried 20°C: 629 A
- Perm. Current in duct 20°C: 470 A
ET-TC-105 2/0 AWG 5kV 133%IL 5M25
Nexans ref.
- Packaging: Cut to length (300m)
- Conductor cross-section (AWG/KCMIL): 2/0
- Conductor cross-section: - kcmil
- Conductor cross-section: 67.4 mm²
- Operating voltage: 5 kV
- Perm current rating in air 40°C: 330 A
- Permissible current rating buried 20°C: 365 A
- Perm. Current in duct 20°C: 235 A
ET-TC-105 4/0 AWG 5kV 133%IL 5M25
Nexans ref.
- Packaging: Cut to length (300m)
- Conductor cross-section (AWG/KCMIL): 4/0
- Conductor cross-section: - kcmil
- Conductor cross-section: 107 mm²
- Operating voltage: 5 kV
- Perm current rating in air 40°C: 445 A
- Permissible current rating buried 20°C: 465 A
- Perm. Current in duct 20°C: 310 A
ET-TC-105 250 kcmil 5kV 133%IL
Nexans ref.
- Conductor cross-section (AWG/KCMIL): -
- Conductor cross-section: 250 kcmil
- Conductor cross-section: 127 mm²
- Operating voltage: 5 kV
- Perm current rating in air 40°C: 445 A
- Permissible current rating buried 20°C: 510 A
- Perm. Current in duct 20°C: 379 A
ET-TC-105 250 kcmil 25kV 133%IL 5M25
Nexans ref.
- Packaging: Cut to length (300m)
- Conductor cross-section (AWG/KCMIL): -
- Conductor cross-section: 250 kcmil
- Conductor cross-section: 127 mm²
- Operating voltage: 25 kV
- Perm current rating in air 40°C: 490 A
- Permissible current rating buried 20°C: 475 A
- Perm. Current in duct 20°C: 345 A
ET-TC-105 300 kcmil 5kV 133%IL
Nexans ref.
- Conductor cross-section (AWG/KCMIL): -
- Conductor cross-section: 300 kcmil
- Conductor cross-section: 152 mm²
- Operating voltage: 5 kV
- Perm current rating in air 40°C: 497 A
- Permissible current rating buried 20°C: 563 A
- Perm. Current in duct 20°C: 420 A
ET-TC-105 350 kcmil 5kV 133%IL
Nexans ref.
- Conductor cross-section (AWG/KCMIL): -
- Conductor cross-section: 350 kcmil
- Conductor cross-section: 177 mm²
- Operating voltage: 5 kV
- Perm current rating in air 40°C: 550 A
- Permissible current rating buried 20°C: 615 A
- Perm. Current in duct 20°C: 460 A
ET-TC-105 350kcmil 25kV 133%IL 5M25
Nexans ref.
- Packaging: Cut to length (300m)
- Conductor cross-section (AWG/KCMIL): -
- Conductor cross-section: 350 kcmil
- Conductor cross-section: 177 mm²
- Operating voltage: 25 kV
- Perm current rating in air 40°C: 605 A
- Permissible current rating buried 20°C: 575 A
- Perm. Current in duct 20°C: 415 A
ET-TC-105 350 kcmil 5kV 133%IL 5M25
Nexans ref.
- Packaging: Cut to length (300m)
- Conductor cross-section (AWG/KCMIL): -
- Conductor cross-section: 350 kcmil
- Conductor cross-section: 177 mm²
- Operating voltage: 5 kV
- Perm current rating in air 40°C: 615 A
- Permissible current rating buried 20°C: 615 A
- Perm. Current in duct 20°C: 415 A
ET-TC-105 350 kcmil 8kV 133%IL 5M25
Nexans ref.
- Packaging: Cut to length (300m)
- Conductor cross-section (AWG/KCMIL): -
- Conductor cross-section: 350 kcmil
- Conductor cross-section: 177 mm²
- Operating voltage: 8 kV
- Perm current rating in air 40°C: 610 A
- Permissible current rating buried 20°C: 575 A
- Perm. Current in duct 20°C: 415 A
ET-TC-105 400 kcmil 5kV 133%IL
Nexans ref.
- Conductor cross-section (AWG/KCMIL): -
- Conductor cross-section: 400 kcmil
- Conductor cross-section: 203 mm²
- Operating voltage: 5 kV
- Perm current rating in air 40°C: 599 A
- Permissible current rating buried 20°C: 658 A
- Perm. Current in duct 20°C: 494 A
ET-TC-105 500 kcmil 5kV 133%IL 5M25
Nexans ref.
- Packaging: Cut to length (300m)
- Conductor cross-section (AWG/KCMIL): -
- Conductor cross-section: 500 kcmil
- Conductor cross-section: 253 mm²
- Operating voltage: 5 kV
- Perm current rating in air 40°C: 775 A
- Permissible current rating buried 20°C: 745 A
- Perm. Current in duct 20°C: 505 A
ET-TC-105 500 kcmil 8kV 133%IL 5M25
Nexans ref.
- Packaging: Cut to length (300m)
- Conductor cross-section (AWG/KCMIL): -
- Conductor cross-section: 500 kcmil
- Conductor cross-section: 253 mm²
- Operating voltage: 8 kV
- Perm current rating in air 40°C: 765 A
- Permissible current rating buried 20°C: 700 A
- Perm. Current in duct 20°C: 500 A
ET-TC-105 500 kcmil 25kV 133%IL 5M25
Nexans ref.
- Packaging: Cut to length (300m)
- Conductor cross-section (AWG/KCMIL): -
- Conductor cross-section: 500 kcmil
- Conductor cross-section: 253 mm²
- Operating voltage: 25 kV
- Perm current rating in air 40°C: 755 A
- Permissible current rating buried 20°C: 700 A
- Perm. Current in duct 20°C: 500 A
ET-TC-105 35kV 133%IL 500kcmil 5M25
Nexans ref.
- Packaging: Cut to length (300m)
- Conductor cross-section (AWG/KCMIL):
- Conductor cross-section: 500 kcmil
- Conductor cross-section: 253 mm²
- Operating voltage: 35 kV
- Perm current rating in air 40°C: 759 A
- Permissible current rating buried 20°C: 700 A
- Perm. Current in duct 20°C: 557 A
ET-TC-105 35kV 133%IL 750kcmil 5M25
Nexans ref.
- Packaging: Cut to length (300m)
- Conductor cross-section (AWG/KCMIL):
- Conductor cross-section: 750 kcmil
- Conductor cross-section: 380 mm²
- Operating voltage: 35 kV
- Perm current rating in air 40°C: 971 A
- Permissible current rating buried 20°C: 865 A
- Perm. Current in duct 20°C: 655 A
ET-TC-105 1000 kcmil 25kV 133%IL 5M25
Nexans ref.
- Packaging: Cut to length (1600m)
- Conductor cross-section (AWG/KCMIL): -
- Conductor cross-section: 1000 kcmil
- Conductor cross-section: 507 mm²
- Operating voltage: 25 kV
- Perm current rating in air 40°C: 1160 A
- Permissible current rating buried 20°C: 1005 A
- Perm. Current in duct 20°C: 690 A
ET-TC-105 35kV 133%IL 1000kcmil 5M25
Nexans ref.
- Packaging: Cut to length (300m)
- Conductor cross-section (AWG/KCMIL):
- Conductor cross-section: 1000 kcmil
- Conductor cross-section: 507 mm²
- Operating voltage: 35 kV
- Perm current rating in air 40°C: 1154 A
- Permissible current rating buried 20°C: 1005 A
- Perm. Current in duct 20°C: 807 A
Description
Description
Standards
-
ProductASTM B 3; ASTM B 496; ASTM B 8; ICEA S-93-639; IEC 60228; UL 1072
-
TestIEC 60332-1-2; IEC 60332-3-24 Cat.C
Applications
Power shielded cable for fixed installations, used for connection of transformers, switchgears, GIS substations, motors, generators, feeders in distribution networks. Suitable to be installed directly buried, buried in ducts, in conduits, in tray cables or in free air.
Construction: Singlecore cable.
Conductor: Compact-round stranded copper conductor. For AWG and kcmil sizes: class B according to ASTM B-3, ASTM B8 and ASTM B-496 according to requirements of ICEA S-93-639. For standard mm² sizes: class 2 according to IEC 60228.
Conductor shield: Extruded semiconducting material.
Insulation: Ethylene propylene rubber (EPR) with excellent electrical properties, good resistance to ozone and chemical agents. Maximum operating temperature 105°C.
Insulation shield: Extruded semiconducting material.
Metallic shield: Copper tape applied helically in intimate contact with the underlaying semiconducting layer.
Oversheath: Polyvinyl Chloride (PVC), flame retardant and fire retardant according to IEC 60332-3-24 Cat. C. Resistant to weather and UV radiation. Color upon request.
Marking: NEXANS CHILE ET-TC-105 "size" "Rated voltage" Cu EPR Nominal Insulation Thickness 105°C "Manuf. order" "Date"

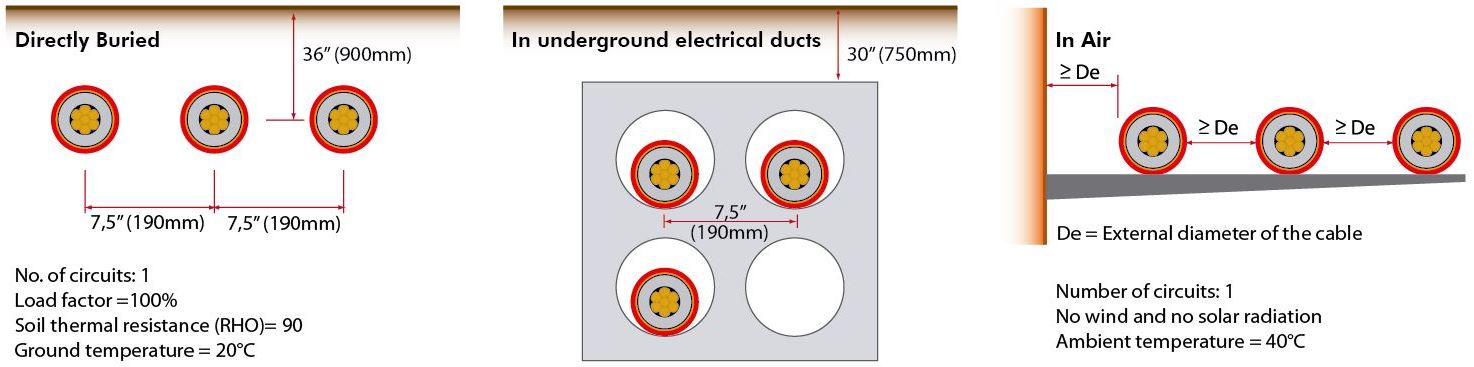

INSTALLATION CONDITIONS FOR CURRENT CARRYING CAPACITIES_MV CABLES
(1) Current carrying capacities based on NEC/NFPA 70, for installations were ducts and cables are not directly exposed to solar radiation.
De-rating factors must be applied according to specific instalation conditions.
INSTALLATION CONDITIONS FOR CURRENT CARRYING CAPACITIES_MV CABLES
Characteristics
Characteristics
Construction characteristics
Construction characteristics
Conductor material
Copper
Insulation
EPR
Screen
Copper tape 0.127mm 25% overlap
Outer sheath
PVC
Electrical characteristics
Electrical characteristics
Insulation Level
133 %
Usage characteristics
Usage characteristics
Max. conductor temperature in service
105 °C
Overload maximum core temperature
140 °C
Short-circuit max. conductor temperature
250 °C
Minimum installation temperature
-10 °C
Fire retardant
IEC 60332-3-24 (cat C)
Flame retardant
IEC 60332-1-2
Oil resistance
ICEA S-93-639 (70°C/4h)
U.V resistance
UL 1581
Resources
Resources
Documentation
Product Certificate CIDET 03422
pdf — 817.8 kB
De-rating factors of current carrying capacity
pdf — 444.1 kB
Our websites
Select your country to find our products and solutions
-
Africa
- Africa
- Ghana
- Ivory Coast
- Morocco
- North West Africa
- Americas
- Asia
- Europe
- Oceania
