H07Z1-K 6mm2 Verde C1000m
H07Z1-K 6mm2 Verde C1000m
Flexible Fire Safety cables for use in fixed and indoor installations in low voltage, 70°C, 450/750V, Chilean certificate as type H07Z1-K according to SEC protocol PE N°2/20.
Read more- Nexans ref. : 10026866
Description
Description
Standards
-
ProductEN 50525-3-31; IEC 60228
-
TestIEC 60332-1-2; IEC 60332-3-24; IEC 60754-1; IEC 60754-2; IEC 61034-2
Uses / Applications
General use for interior power and lighting circuits in dry environments. For installations in places of concentration of people such as: hospitals, casinos, supermarkets, offices, shopping centers, classrooms, auditoriums, etc. These conductors increase the safety of people and property in the event of a fire.
Construction
Formation: Copper monoconductor.
Conductor: Soft copper cable, class 5 flexible stranded according to IEC 60228.
Insulation: FREETOX® compound, Low fire hazard thermoplastic, Halogen free with low smoke emission, low toxicity, highly flame retardant and non-fire propagation. Available in blue, black, red, white or green colors.
Marking: Nexans FREETOX-FLEX H07Z1-K (AS) TIPO 2 "Size" 0,45/0,75 kV 70°C INGCER E-021-14-11415 "Date" CHILE
INSTALATION CONDITIONS FOR CURRENT CARRYING CAPACITY (70°C SINGLE CORE)
Current carrying capacities based on table N°4.4 of RIC N°4, for installation and cables not directly exposed to solar radiation.

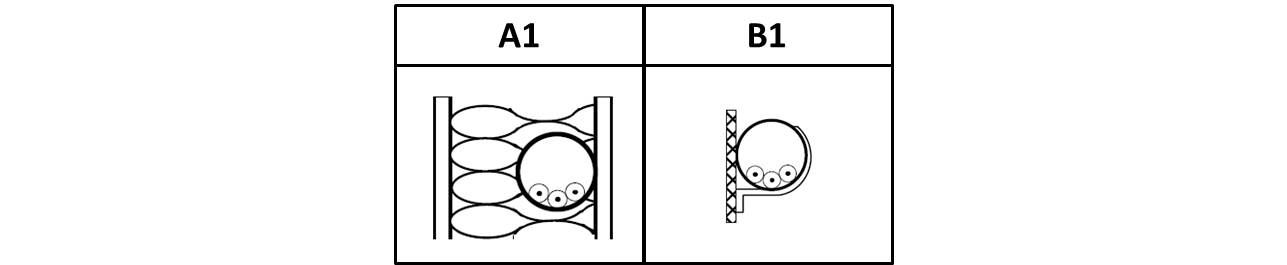

Perm rating in duct 30°C (Current in duct at 30°C): Up to three single conductors with load installed in ducts or channels attached to walls, ambient temperature 30°C.. Installation Method B1 according to RIC N°4
Permissible current rating in duct (Current in embedded duct at 30°C): Up to three single conductors with load installed in ducts embedded in walls, ambient temperature 30°C. Method A1 according to RIC N°4
Current capacity correction factors must be considered according to the specific installation conditions.
INSTALATION CONDITIONS 70C SINGLE CORE
NOTES / VOLTAGE DROP
The indicated values consider single-phase circuits in alternating current at 50Hz. To calculate the voltage drop in Volts, you must multiply the value indicated in the table [V/A.km] by the current to be transported in [A] by the length of the circuit in [km]
Certificate SEC H07Z1-K
Characteristics
Characteristics
Construction characteristics
Construction characteristics
Dimensional characteristics
Dimensional characteristics
Electrical characteristics
Electrical characteristics
Mechanical characteristics
Mechanical characteristics
Usage characteristics
Usage characteristics
